| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD57-2-1276-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 24V |
628 | 232.89 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.8 Ohms |
|
34KM-K206-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
838 | 247.93 |
RFQ |
Datasheet |
Bulk | 34KM | Active | Hybrid | Unipolar | 24VDC | 4.7 A | 200 | 1.8° | ±5% | 948.92 / 6700 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | 34 | 0.551 (14.00mm) | 1.457 (37.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.85 Ohms |
|
|
34KM-K221-99WSTEP MOTOR HYBRID DUAL SHAFT 24V |
608 | 250.76 |
RFQ |
Datasheet |
Bulk | 34KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 948.92 / 6700 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | 34 | 0.551 (14.00mm) | 1.457 (37.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 4.9 Ohms |
.jpg)
|

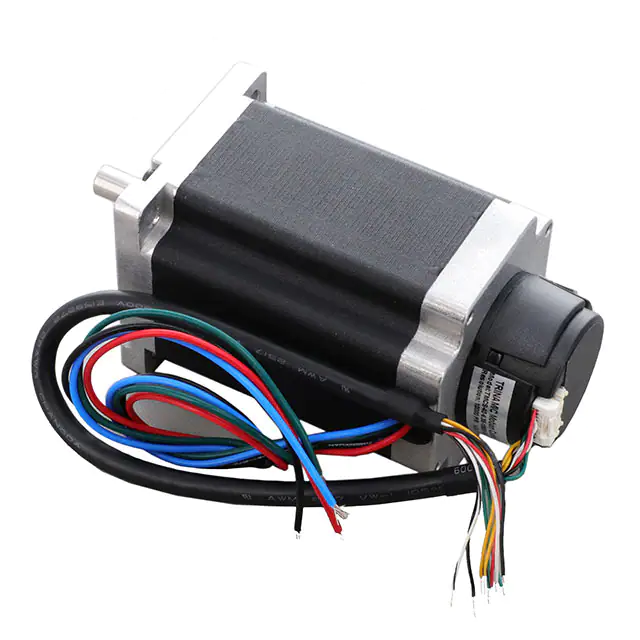

QSH6018-86-90-300-10KSTEP MOTOR HYBRID NEMA24 + ENC |
926 | 253.81 |
RFQ |
Datasheet |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 2.1VDC | 9 A | 200 | 1.8° | ±5% | 424.93 / 3000 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | - | 0.15 Ohms |
|

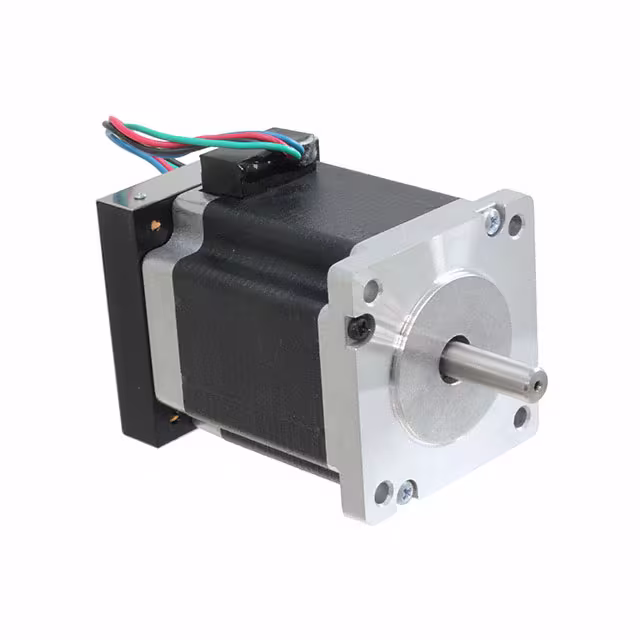

PD60-3-1276-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 24V |
405 | 256.36 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200 | 1.8° | ±5% | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms |
|

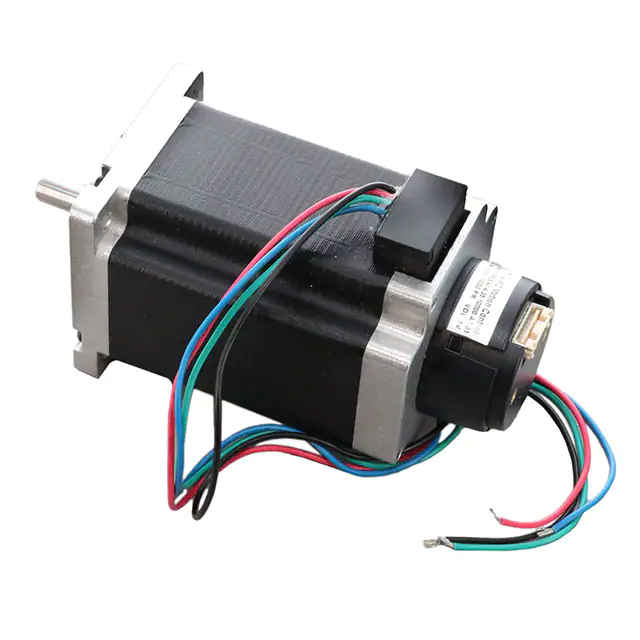

QSH6018-86-28-310-10KSTEP MOTOR HYBRID NEMA24 ENC 100 |
349 | 272.10 |
RFQ |
Datasheet |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200 | 1.8° | ±5% | 439 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.5 Ohms |
|
|
PD57-1-1260-CANOPENPANDRIVE NEMA23, 48V, 0.55NM |
931 | 273.62 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200 | 1.8° | - | 77.89 / 550 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | |
|

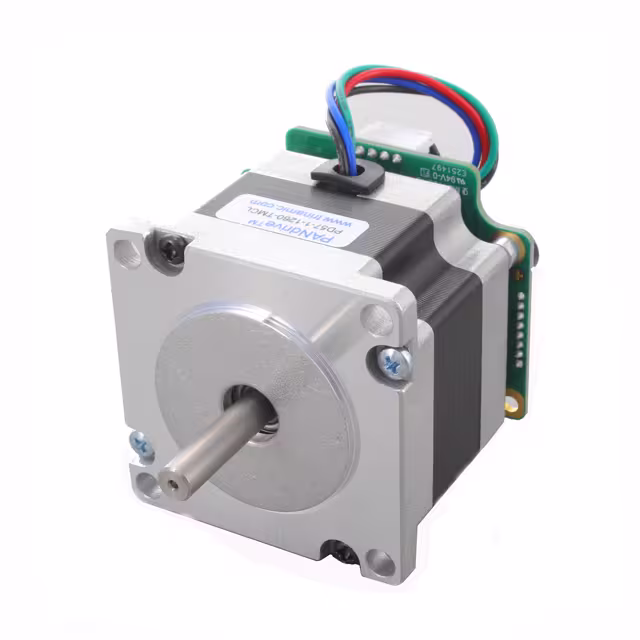

PD57-1-1260-TMCLPANDRIVE NEMA23, 48V, 0.55NM |
510 | 273.62 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200 | 1.8° | - | 77.89 / 550 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | |
|

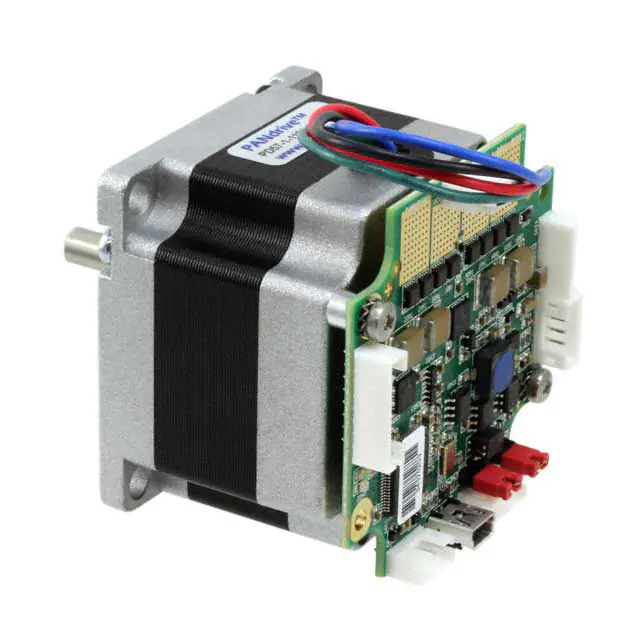

PD57-1-1160-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 48V |
856 | 292.89 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200 | 1.8° | - | 77.89 / 550 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|

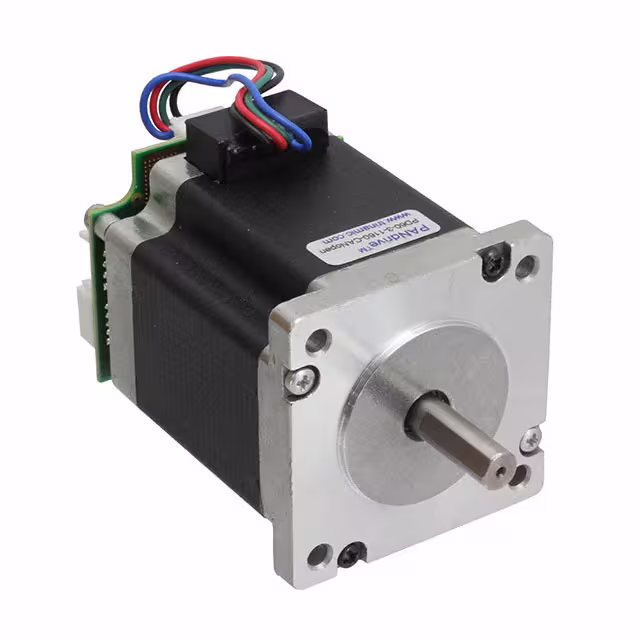

PD60-3-1160-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 48V |
351 | 345.02 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|

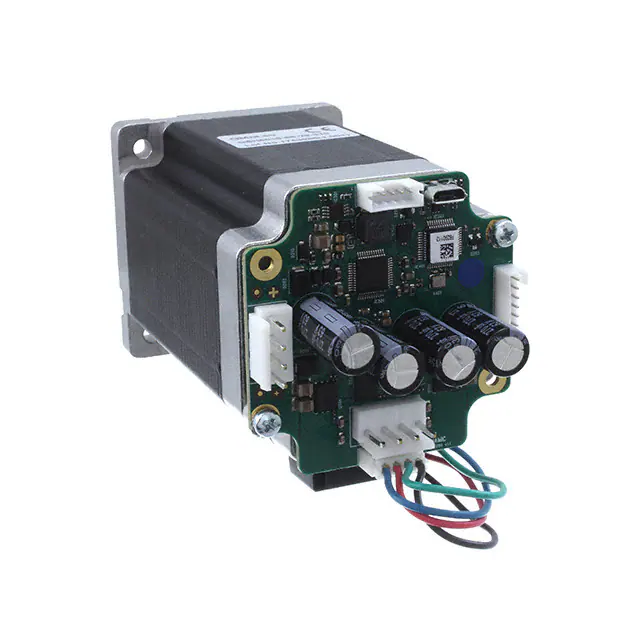

PD60-4-1260-CANOPENPANDRIVE NEMA24, 48V, 3.1NM |
988 | 356.80 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 6.8VDC | 2.8 A | 200 | 1.8° | - | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | |
|

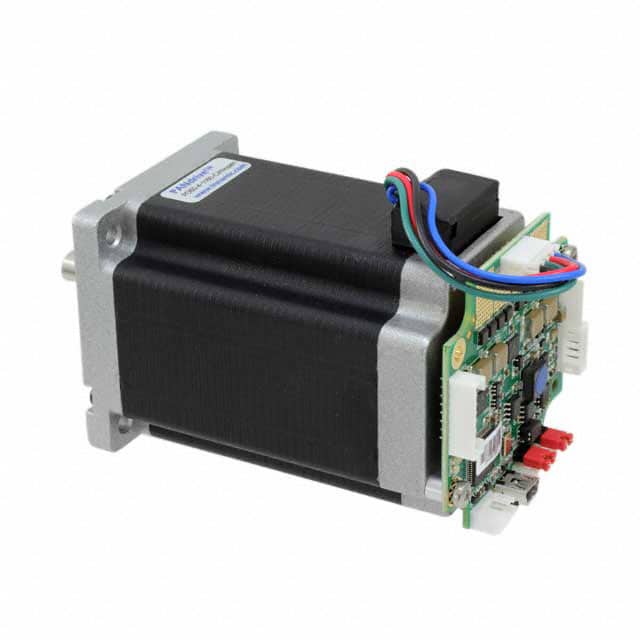

PD60-4-1160-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 48V |
787 | 401.83 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200 | 1.8° | - | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|
|
PD86-3-1278-TMCLPANDRIVE NEMA34, 48V, 7NM |
670 | 510.24 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200 | 1.8° | ±5% | 991.28 / 7000 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.45 Ohms | |
|

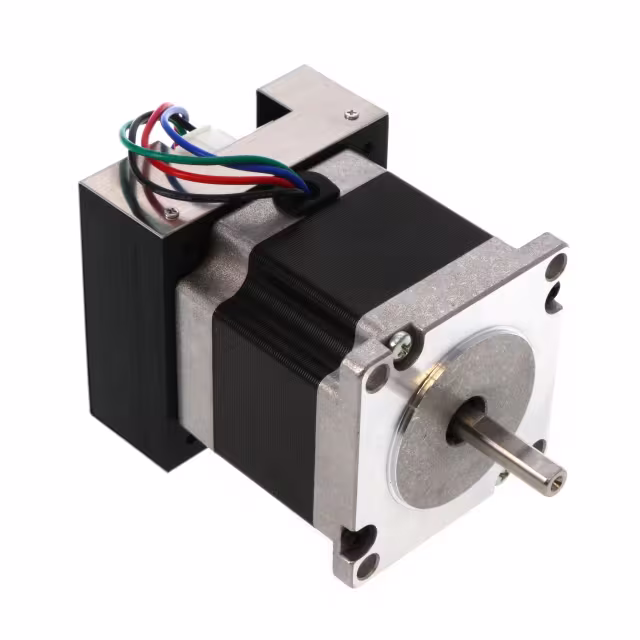

PD57-2-1378-CANOPENPANDRIVE NEMA23, 48V, 1.01NM |
691 | 513.56 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.8 Ohms | |
|

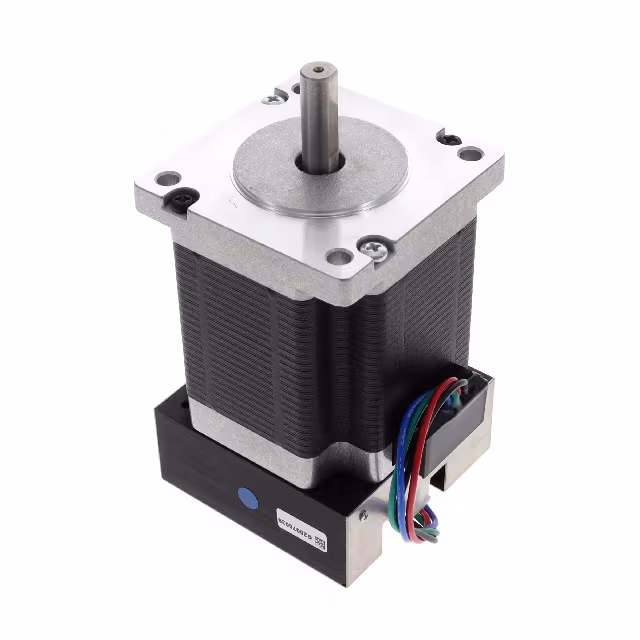

PD60-3-1378-CANOPENPANDRIVE NEMA24, 48V, 2.1NM |
447 | 542.83 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200 | 1.8° | ±5% | 297.4 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | |
|
|
PD60-3-1378-TMCLPANDRIVE NEMA24, 48V, 2.1NM |
561 | 542.83 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200 | 1.8° | ±5% | 297.4 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | |
|
|
PD86-3-1378-CANOPENPANDRIVE NEMA34, 48V, 7NM |
464 | 700.50 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200 | 1.8° | ±5% | 991.28 / 7000 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.45 Ohms | |
|
|
PD86-3-1378-TMCLPANDRIVE NEMA34, 48V, 7NM |
338 | 700.50 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200 | 1.8° | ±5% | 991.28 / 7000 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.45 Ohms | |
|
SF2421-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA |
4,792 | 25.00 |
RFQ |
Datasheet |
Box | SF | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 41.07 / 290 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 3.6 Ohms |
|
SF2423-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA |
1,997 | 29.16 |
RFQ |
Datasheet |
Box | SF | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 79.3 / 560 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 5.3 Ohms |
