Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

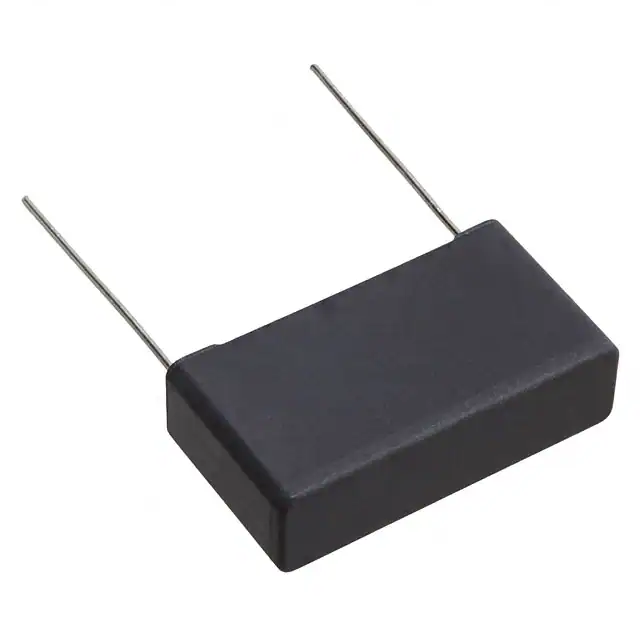

R60ER51005040K CAP FILM 10UF 10% 100VDC RADIAL KEMET	7,133	4.31	RFQ	Datasheet	Radial	Bulk	R60	Active	10 µF	±10%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	1.260 L x 0.354 W (32.00mm x 9.00mm)	0.673 (17.10mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
ECQ-E1106JF CAP FILM 10UF 5% 100VDC RADIAL Panasonic Electronic Components	7,234	4.35	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	10 µF	±5%	63V	100V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.453 W (26.00mm x 11.50mm)	0.886 (22.50mm)	PC Pins	0.886 (22.50mm)	General Purpose	-
R71QR4180AA10K CAP FILM 1.8UF 10% 1KVDC RADIAL KEMET	9,773	4.41	RFQ	Datasheet	Radial	Tray	R71	Active	1.8 µF	±10%	275V	1000V (1kV)	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.260 L x 0.551 W (32.00mm x 14.00mm)	1.106 (28.10mm)	PC Pins	1.083 (27.50mm)	High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC)	-
ECQ-E2106JF CAP FILM 10UF 5% 250VDC RADIAL Panasonic Electronic Components	7,162	4.41	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	10 µF	±5%	150V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.220 L x 0.626 W (31.00mm x 15.90mm)	1.075 (27.30mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
R76QR339050H3J CAP FILM 0.39UF 5% 1KVDC RAD KEMET	6,492	4.41	RFQ	Datasheet	Radial	Tray	R76	Active	0.39 µF	±5%	600V	1000V (1kV)	Polypropylene (PP), Metallized	8 mOhms	-55°C ~ 125°C	Through Hole	1.260 L x 0.709 W (32.00mm x 18.00mm)	1.303 (33.10mm)	PC Pins	1.083 (27.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200

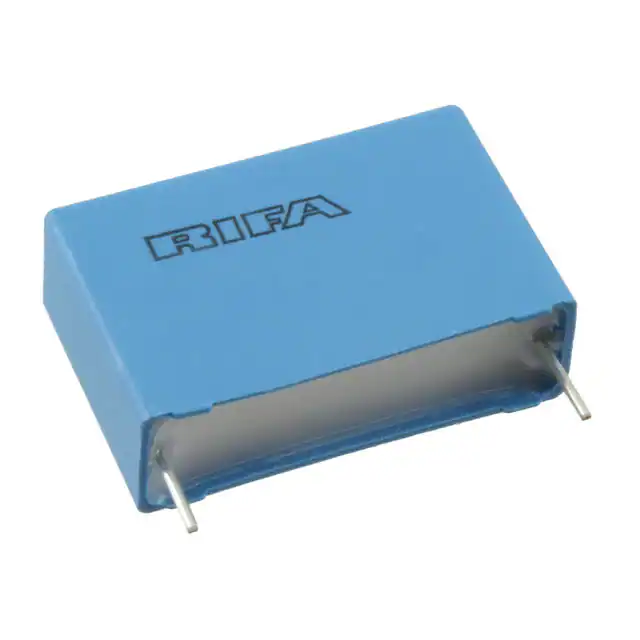

PHE450PF6220JR06L2 CAP FILM 0.22UF 5% 1KVDC RADIAL KEMET	5,974	4.43	RFQ	Datasheet	Radial	Tray	PHE450	Active	0.22 µF	±5%	600V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.240 L x 0.394 W (31.50mm x 10.00mm)	0.807 (20.50mm)	PC Pins	1.083 (27.50mm)	High Frequency, Switching	-
940C20S22K-F CAP FILM 0.022UF 10% 2KVDC AXIAL Cornell Dubilier Electronics (CDE)	5,396	4.45	RFQ	Datasheet	Axial	Bulk	940C	Active	0.022 µF	±10%	500V	2000V (2kV)	Polypropylene (PP), Metallized	35 mOhms	-55°C ~ 105°C	Through Hole	0.453 Dia x 1.339 L (11.50mm x 34.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
C4AQCLU5100A19J CAP FILM 10UF 5% 650VDC RADIAL KEMET	9,059	4.48	RFQ	Datasheet	Radial	Bulk	C4AQ	Active	10 µF	±5%	-	650V	Polypropylene (PP), Metallized	6.4 mOhms	-55°C ~ 105°C	Through Hole	1.260 L x 1.220 W (32.00mm x 31.00mm)	0.756 (19.20mm)	PC Pins	1.083 (27.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
715P10452LD3 CAP FILM 0.1UF 5% 200VDC RADIAL Cornell Dubilier Electronics (CDE)	9,107	4.52	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.1 µF	±5%	155V	200V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.382 Dia x 1.252 L (9.70mm x 31.80mm)	0.693 (17.60mm)	PC Pins	0.720 (18.30mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
715P10496LD3 CAP FILM 0.1UF 10% 600VDC RADIAL Cornell Dubilier Electronics (CDE)	8,360	4.53	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.1 µF	±10%	200V	600V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.709 Dia x 1.252 L (18.00mm x 31.80mm)	1.008 (25.60mm)	PC Pins	0.720 (18.30mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
BFC233814105 CAP FILM 1UF 20% 1KVDC RADIAL Vishay Beyschlag/Draloric/BC Components	9,477	4.55	RFQ	Datasheet	Radial	Bulk	MKP338 1	Active	1 µF	±20%	440V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.220 L x 0.827 W (31.00mm x 21.00mm)	1.220 (31.00mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
MKS4B051004J00KSSD CAP FILM 10UF 10% 50VDC RAD WIMA	7,305	4.56	RFQ	Datasheet	Radial	Bulk	-	Active	10 µF	±10%	30V	50V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 100°C	Through Hole	0.709 L x 0.354 W (18.00mm x 9.00mm)	0.630 (16.00mm)	PC Pins	0.591 (15.00mm)	General Purpose	-

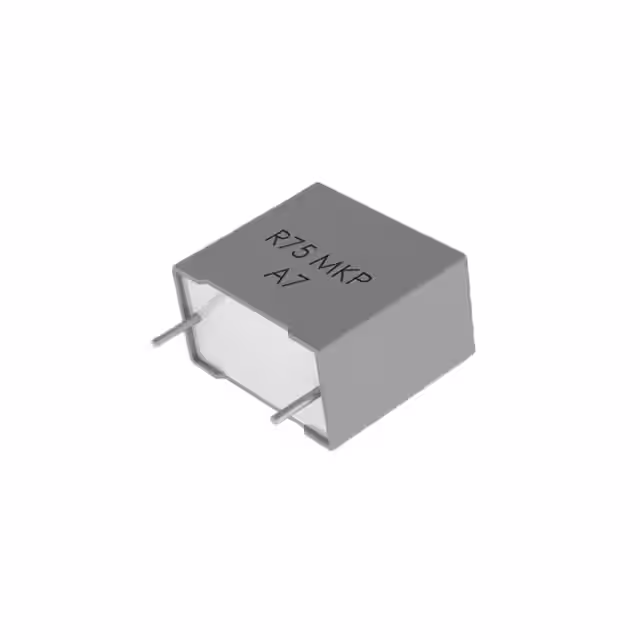

R75GR44704030J CAP FILM 4.7UF 5% 160VDC RAD KEMET	8,093	4.56	RFQ	Datasheet	Radial	Tray	R75	Active	4.7 µF	±5%	90V	160V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.260 L x 0.512 W (32.00mm x 13.00mm)	0.988 (25.10mm)	PC Pins	1.083 (27.50mm)	High Frequency, Switching; High Pulse, DV/DT	-
B32654A2683J000 CAP FILM 0.068UF 5% 2KVDC RADIAL EPCOS - TDK Electronics	8,554	4.59	RFQ	Datasheet	Radial	Bulk	B3265* - MKP General Purpose	Active	0.068 µF	±5%	700V	2000V (2kV)	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	1.240 L x 0.748 W (31.50mm x 19.00mm)	1.181 (30.00mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering; High Pulse, DV/DT	AEC-Q200
715P47454MD3 CAP FILM 0.47UF 5% 400VDC RADIAL Cornell Dubilier Electronics (CDE)	8,492	4.60	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.47 µF	±5%	200V	400V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.819 Dia x 1.650 L (20.80mm x 41.90mm)	1.134 (28.80mm)	PC Pins	1.094 (27.80mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
C4AQILW4580A34J CAP FILM 5.8UF 5% 800VDC RADIAL KEMET	6,797	4.60	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AQ	Active	5.8 µF	±5%	-	800V	Polypropylene (PP), Metallized	15.7 mOhms	-55°C ~ 105°C	Through Hole	1.634 L x 0.945 W (41.50mm x 24.00mm)	0.598 (15.20mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200

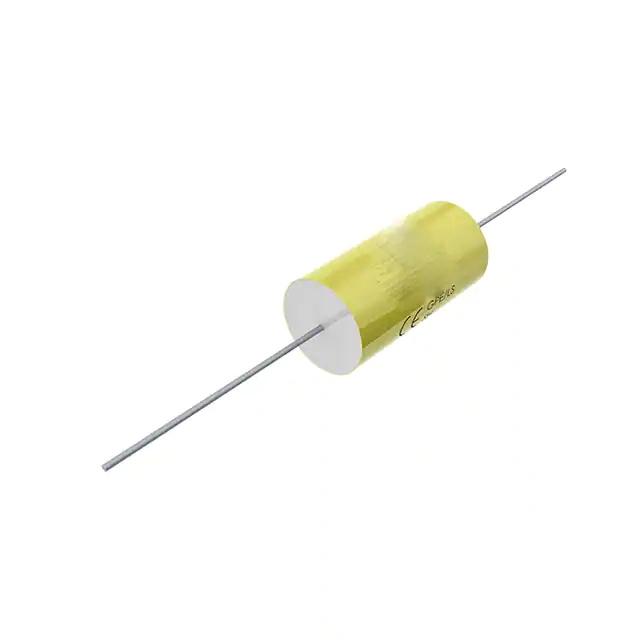

C4CAMUB3100AA0J CAP FILM 0.1UF 5% 850VDC AXIAL KEMET	8,509	4.63	RFQ	Datasheet	Axial	Box	C4C	Active	0.1 µF	±5%	450V	850V	Polypropylene (PP), Metallized	16.6 mOhms	-40°C ~ 85°C	Through Hole	0.413 Dia x 1.299 L (10.50mm x 33.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching; Snubber	-
BFC241673304 CAP FILM 0.33UF 2% 63VDC RADIAL Vishay Beyschlag/Draloric/BC Components	7,156	4.67	RFQ	Datasheet	Radial	Bulk	MKP416	Active	0.33 µF	±2%	25V	63V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.689 L x 0.236 W (17.50mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
940C6P47K-F CAP FILM 0.47UF 10% 600VDC AXIAL Cornell Dubilier Electronics (CDE)	5,251	4.70	RFQ	Datasheet	Axial	Bulk	940C	Active	0.47 µF	±10%	275V	600V	Polypropylene (PP), Metallized	7 mOhms	-55°C ~ 105°C	Through Hole	0.610 Dia x 1.339 L (15.50mm x 34.00mm)	-	PC Pins	-	High Pulse, DV/DT	-

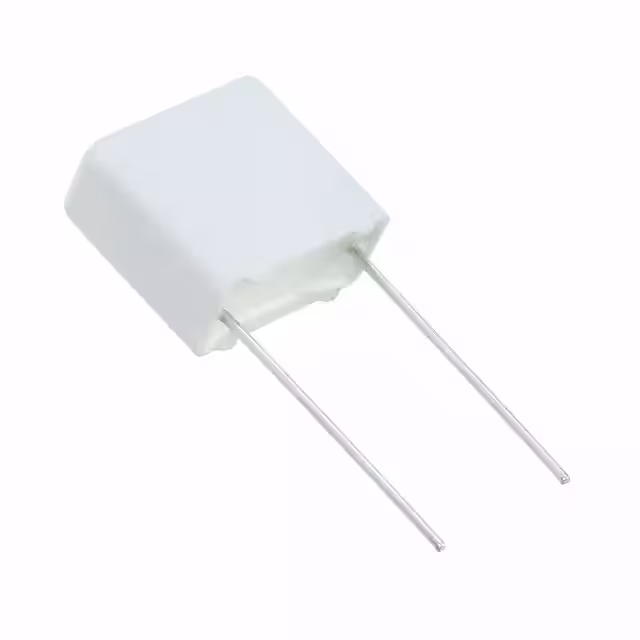

SMR10105J63A04L16.5CBULK CAP FILM 1UF 5% 63VDC RADIAL KEMET	9,788	4.76	RFQ	Datasheet	Radial	Bulk	SMR	Active	1 µF	±5%	40V	63V	Polyphenylene Sulfide (PPS), Metallized	-	-55°C ~ 150°C	Through Hole	0.512 L x 0.236 W (13.00mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.394 (10.00mm)	General Purpose	-
