Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

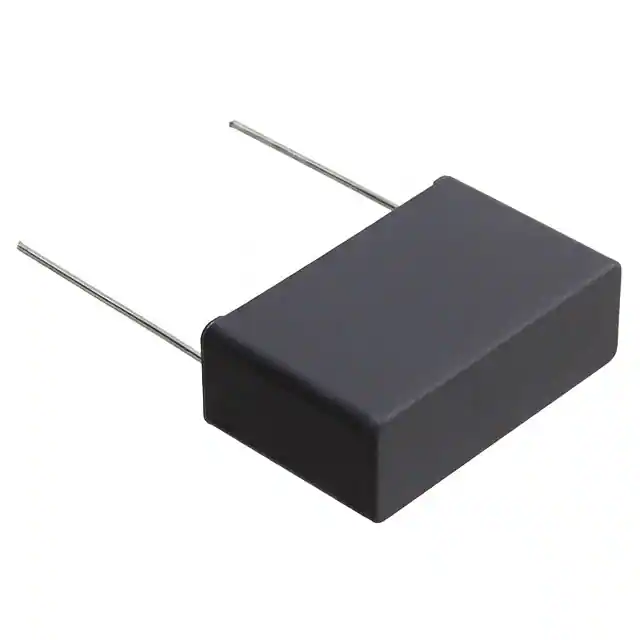

R60DR52205040J CAP FILM 22UF 5% 63VDC RADIAL KEMET	8,589	6.22	RFQ	Datasheet	Radial	Bulk	R60	Active	22 µF	±5%	40V	63V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	1.260 L x 0.433 W (32.00mm x 11.00mm)	0.791 (20.10mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
R46KW510000M1M CAP FILM 10UF 20% 560VDC RAD KEMET	5,372	6.26	RFQ	Datasheet	Radial	Bulk	R46	Active	10 µF	±20%	275V	560V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.634 L x 1.181 W (41.50mm x 30.00mm)	1.776 (45.10mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression	X2

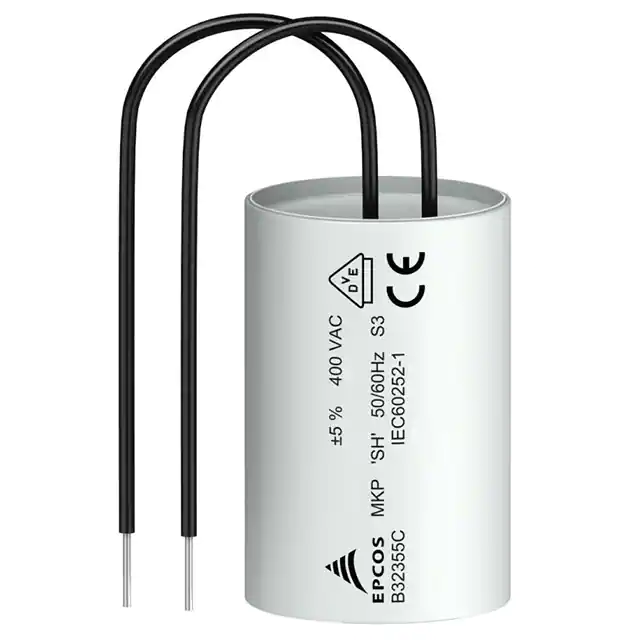

B32355C4155J019 CAP FILM 1.5UF 5% 400VAC RADIAL EPCOS - TDK Electronics	6,096	6.29	RFQ	Datasheet	Radial, Can	Bulk	B32355C – MotorCap™ S3 Compact	Active	1.5 µF	±5%	400V	-	Polypropylene (PP), Metallized	-	-25°C ~ 100°C	Chassis Mount	0.984 Dia (25.00mm)	2.126 (54.00mm)	Wire Leads	-	Motor Run	-

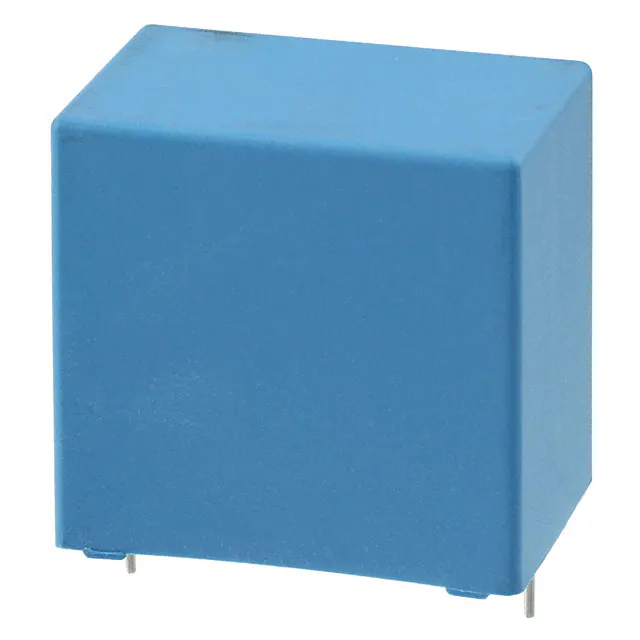

PHE844RF7100MR30L2 CAP FILM 1UF 20% 1KVDC RADIAL KEMET	9,363	6.29	RFQ	Datasheet	Radial	Tray	PHE844	Active	1 µF	±20%	480V	1000V (1kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.240 L x 0.827 W (31.50mm x 21.00mm)	1.181 (30.00mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression	X1

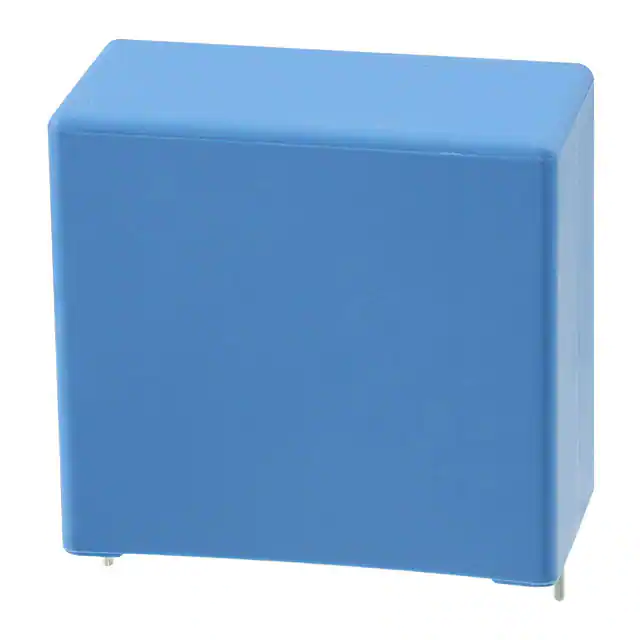

PHE845VR6470MR06L2 CAP FILM 0.47UF 20% 1.5KVDC RAD KEMET	8,526	6.29	RFQ	Datasheet	Radial	Tray	PHE845	Active	0.47 µF	±20%	760V	1500V (1.5kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.614 L x 0.650 W (41.00mm x 16.50mm)	1.260 (32.00mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression	X1
B32355C4205J019 CAP FILM 2UF 5% 400VAC RADIAL EPCOS - TDK Electronics	9,543	6.43	RFQ	Datasheet	Radial, Can	Bulk	B32355C – MotorCap™ S3 Compact	Active	2 µF	±5%	400V	-	Polypropylene (PP), Metallized	-	-25°C ~ 100°C	Chassis Mount	0.984 Dia (25.00mm)	2.126 (54.00mm)	Wire Leads	-	Motor Run	-
FKP1Y024707H00MSSD CAP FILM 0.047UF 20% 6KVDC RAD WIMA	7,138	6.57	RFQ	Datasheet	Radial	Bulk	-	Active	0.047 µF	±20%	700V	6000V (6kV)	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	1.634 L x 0.945 W (41.50mm x 24.00mm)	1.791 (45.50mm)	PC Pins	1.476 (37.50mm)	High Frequency, Switching; High Pulse, DV/DT	-
940C10P33K-F CAP FILM 0.33UF 10% 1KVDC AXIAL Cornell Dubilier Electronics (CDE)	7,062	6.68	RFQ	Datasheet	Axial	Bulk	940C	Active	0.33 µF	±10%	500V	1000V (1kV)	Polypropylene (PP), Metallized	6 mOhms	-55°C ~ 105°C	Through Hole	0.807 Dia x 1.339 L (20.50mm x 34.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
JS251106-BA CAP FILM 10UF 10% 250VAC CHAS MT Panasonic Electronic Components	8,894	6.74	RFQ	Datasheet	Rectangular Box	Bulk	PMF	Active	10 µF	±10%	250V	-	Polypropylene (PP), Metallized	-	-25°C ~ 70°C	Chassis Mount	1.957 L x 0.945 W (49.70mm x 24.00mm)	1.378 (35.00mm)	Quick Connect - 0.187 (4.7mm)	-	Motor Run	-

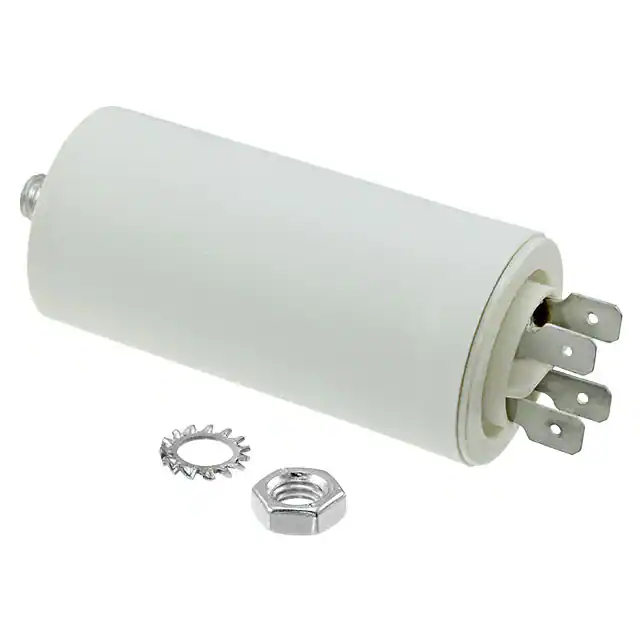

276CC25200AA0J CAP FILM 20UF 5% 470VAC RADIAL KEMET	8,287	6.75	RFQ	Datasheet	Radial, Can	Bulk	C276	Active	20 µF	±5%	470V	-	Polypropylene (PP)	-	-25°C ~ 85°C	Chassis, Stud Mount	1.575 Dia (40.00mm)	2.972 (75.50mm)	Quick Connect - 0.250 (6.3mm)	0.394 (10.00mm)	Motor Run; Motor Start	-
224PPA202K CAP FILM 0.22UF 10% 2KVDC AXIAL Cornell Dubilier / Illinois Capacitor	9,754	6.75	RFQ	Datasheet	Axial	Bulk	PPA	Active	0.22 µF	±10%	650V	2000V (2kV)	Polypropylene (PP), Metallized	6 mOhms	-55°C ~ 85°C	Through Hole	0.906 Dia x 1.811 L (23.00mm x 46.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching; Snubber	-
104PPA202K CAP FILM 0.1UF 10% 2KVDC AXIAL Cornell Dubilier / Illinois Capacitor	8,908	6.78	RFQ	Datasheet	Axial	Bulk	PPA	Active	0.1 µF	±10%	650V	2000V (2kV)	Polypropylene (PP), Metallized	8.4 mOhms	-55°C ~ 85°C	Through Hole	0.787 Dia x 1.339 L (20.00mm x 34.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching; Snubber	-

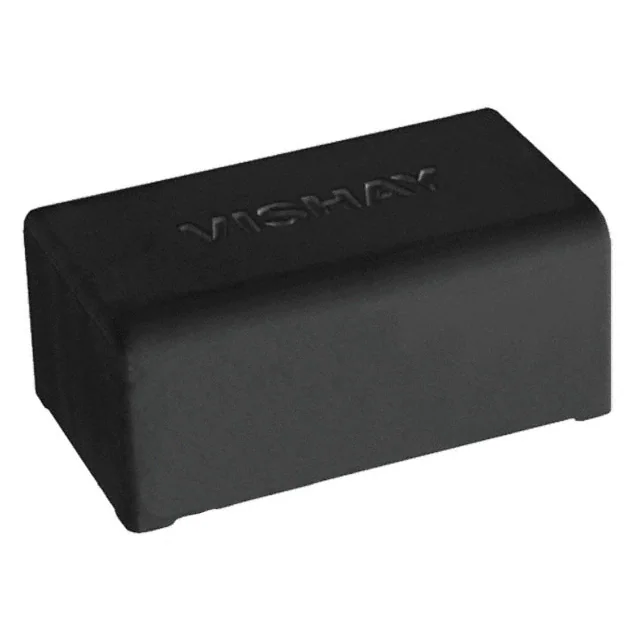

MKP1848S55010JP2C CAP FILM 5UF 5% 1KVDC RADIAL Vishay Beyschlag/Draloric/BC Components	5,280	6.79	RFQ	Datasheet	Radial	Bulk	MKP1848S DC-Link	Active	5 µF	±5%	-	1000V (1kV)	Polypropylene (PP), Metallized	21 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.063 W (42.00mm x 27.00mm)	0.709 (18.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
225P10591YD3 CAP FILM 1UF 10% 100VDC RADIAL Cornell Dubilier Electronics (CDE)	9,678	6.91	RFQ	Datasheet	Radial	Bulk	Orange Drop® 225P	Active	1 µF	±10%	-	100V	Polyester	-	-55°C ~ 85°C	Through Hole	1.252 L x 0.720 W (31.80mm x 18.30mm)	0.980 (24.90mm)	PC Pins	0.720 (18.30mm)	Audio; DC Link, DC Filtering	-
MKX14W42207G00KSSD CAP FILM 2.2UF 10% 440VAC RADIAL WIMA	7,547	6.97	RFQ	Datasheet	Radial	Bulk	-	Active	2.2 µF	±10%	440V	-	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.555 (39.50mm)	PC Pins	1.476 (37.50mm)	General Purpose	X1

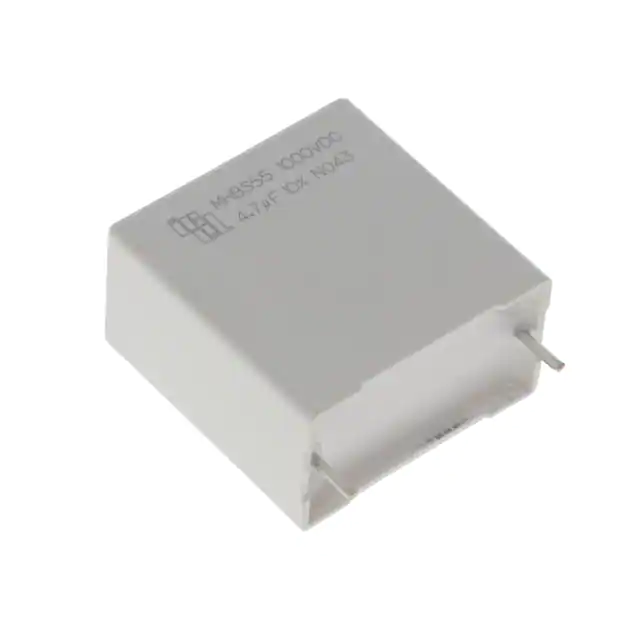

MHBS554470KHS 1000V,4.7UF,10 PERCENT, RADIAL B Nichicon	8,703	6.97	RFQ	Datasheet	Radial	Bulk	MHBS	Active	4.7 µF	±10%	400V	1000V (1kV)	Polypropylene (PP), Metallized	8.3 mOhms	-40°C ~ 85°C	Through Hole	1.043 L x 0.512 W (26.50mm x 13.00mm)	0.866 (22.00mm)	PC Pins	0.886 (22.50mm)	DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT	-
715P10456LD3 CAP FILM 0.1UF 5% 600VDC RADIAL Cornell Dubilier Electronics (CDE)	5,876	6.98	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.1 µF	±5%	200V	600V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.709 Dia x 1.252 L (18.00mm x 31.80mm)	1.008 (25.60mm)	PC Pins	0.720 (18.30mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
4CAMUD4100AA1J CAP FILM 1UF 5% 850VDC AXIAL KEMET	8,270	7.01	RFQ	Datasheet	Axial	Bulk	C4C	Active	1 µF	±5%	450V	850V	Polypropylene (PP), Metallized	3.8 mOhms	-40°C ~ 85°C	Through Hole	0.984 Dia x 1.732 L (25.00mm x 44.00mm)	-	PC Pins	-	Snubber	-
F863RT106K310Z CAP FILM 10UF 10% 310VAC RADIAL KEMET	8,721	7.11	RFQ	Datasheet	Radial	Bulk	F863	Active	10 µF	±10%	310V	-	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.634 L x 1.181 W (41.50mm x 30.00mm)	1.776 (45.10mm)	PC Pins	1.476 (37.50mm)	Automotive; EMI, RFI Suppression	AEC-Q200, X2

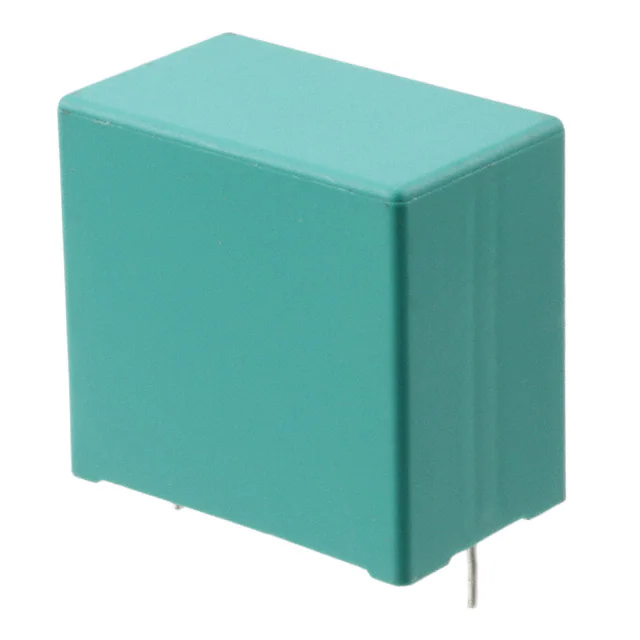

C4AEGBU5125A11J CAP FILM 12.5UF 5% 450VDC RADIAL KEMET	8,795	7.13	RFQ	Datasheet	Radial	Bulk	C4AE	Active	12.5 µF	±5%	-	450V	Polypropylene (PP), Metallized	6.2 mOhms	-40°C ~ 85°C	Through Hole	1.240 L x 0.748 W (31.50mm x 19.00mm)	1.150 (29.20mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
