Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

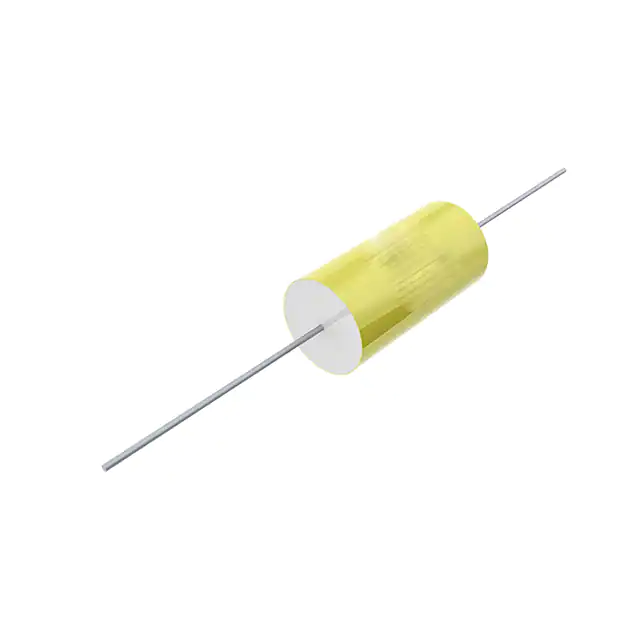

A72QQ2470ZA00M CAP FILM 0.047UF 20% 1KVDC AXIAL KEMET	7,451	5.46	RFQ		Axial	Box	A72	Active	0.047 µF	±20%	400V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	-	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT	-
106MWR050K CAP FILM 10UF 10% 50VDC AXIAL Cornell Dubilier / Illinois Capacitor	6,005	5.47	RFQ	Datasheet	Axial	Bulk	MWR	Active	10 µF	±10%	30V	50V	Polyester, Metallized	177 mOhms	-40°C ~ 105°C	Through Hole	0.531 Dia x 0.807 L (13.50mm x 20.50mm)	-	PC Pins	-	General Purpose	-
C4GAHUC4300AA1J CAP FILM 3UF 5% 600VDC AXIAL KEMET	7,674	5.55	RFQ	Datasheet	Axial	Box	C4G	Active	3 µF	±5%	330V	600V	Polypropylene (PP), Metallized	4.8 mOhms	-40°C ~ 85°C	Through Hole	0.886 Dia x 1.732 L (22.50mm x 44.00mm)	-	PC Pins	-	High Frequency, Switching	-
940C10P22K-F CAP FILM 0.22UF 10% 1KVDC AXIAL Cornell Dubilier Electronics (CDE)	5,357	5.66	RFQ	Datasheet	Axial	Bulk	940C	Active	0.22 µF	±10%	500V	1000V (1kV)	Polypropylene (PP), Metallized	7 mOhms	-55°C ~ 105°C	Through Hole	0.689 Dia x 1.339 L (17.50mm x 34.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
R76PW410050H3J CAP FILM 1UF 5% 630VDC RADIAL KEMET	8,761	5.66	RFQ	Datasheet	Radial	Tray	R76	Active	1 µF	±5%	400V	630V	Polypropylene (PP), Metallized	3 mOhms	-55°C ~ 125°C	Through Hole	1.634 L x 0.630 W (41.50mm x 16.00mm)	1.126 (28.60mm)	PC Pins	1.476 (37.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
940C16P1K-F CAP FILM 0.1UF 10% 1.6KVDC AXIAL Cornell Dubilier Electronics (CDE)	7,736	5.68	RFQ	Datasheet	Axial	Bulk	940C	Active	0.1 µF	±10%	500V	1600V (1.6kV)	Polypropylene (PP), Metallized	7 mOhms	-55°C ~ 105°C	Through Hole	0.709 Dia x 1.339 L (18.00mm x 34.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
R76TW34704030J CAP FILM 0.47UF 5% 1.5KVDC RAD KEMET	7,396	5.68	RFQ	Datasheet	Radial	Tray	R76	Active	0.47 µF	±5%	650V	1500V (1.5kV)	Polypropylene (PP), Metallized	7 mOhms	-55°C ~ 110°C	Through Hole	1.634 L x 0.748 W (41.50mm x 19.00mm)	1.264 (32.10mm)	PC Pins	1.476 (37.50mm)	High Frequency, Switching; High Pulse, DV/DT	-
C4GAFUC4500AA1J CAP FILM 5UF 5% 400VDC AXIAL KEMET	8,775	5.74	RFQ	Datasheet	Axial	Bulk	C4G	Active	5 µF	±5%	250V	400V	Polypropylene (PP), Metallized	4 mOhms	-40°C ~ 85°C	Through Hole	0.846 Dia x 1.732 L (21.50mm x 44.00mm)	-	PC Pins	-	High Frequency, Switching	-
715P47356LD3 CAP FILM 0.047UF 5% 600VDC RAD Cornell Dubilier Electronics (CDE)	6,688	5.76	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.047 µF	±5%	200V	600V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.520 Dia x 1.252 L (13.20mm x 31.80mm)	0.811 (20.60mm)	PC Pins	0.720 (18.30mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
R76UR322050H3J CAP FILM 0.22UF 5% 2KVDC RADIAL KEMET	7,113	5.80	RFQ	Datasheet	Radial	Bulk	R76H	Active	0.22 µF	±5%	700V	2000V (2kV)	Polypropylene (PP), Metallized	14 mOhms	-55°C ~ 125°C	Through Hole	1.260 L x 0.866 W (32.00mm x 22.00mm)	1.461 (37.10mm)	PC Pins	-	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
940C30S68K-F CAP FILM 0.068UF 10% 3KVDC AXIAL Cornell Dubilier Electronics (CDE)	5,504	5.82	RFQ	Datasheet	Axial	Bulk	940C	Active	0.068 µF	±10%	500V	3000V (3kV)	Polypropylene (PP), Metallized	12 mOhms	-55°C ~ 105°C	Through Hole	0.748 Dia x 1.811 L (19.00mm x 46.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
C4CAYUC2470AA1J CAP FILM 0.047UF 5% 3KVDC AXIAL KEMET	6,182	5.83	RFQ	Datasheet	Axial	Bulk	C4C	Active	0.047 µF	±5%	750V	3000V (3kV)	Polypropylene (PP), Metallized	25.7 mOhms	-40°C ~ 85°C	Through Hole	0.748 Dia x 1.732 L (19.00mm x 44.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching; Snubber	-
305PHC400K CAP FILM 3UF 10% 400VDC AXIAL Cornell Dubilier / Illinois Capacitor	9,398	5.85	RFQ	Datasheet	Axial	Bulk	PHC	Active	3 µF	±10%	250V	400V	Polypropylene (PP), Metallized	3.8 mOhms	-40°C ~ 85°C	Through Hole	0.827 Dia x 1.339 L (21.00mm x 34.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching	-

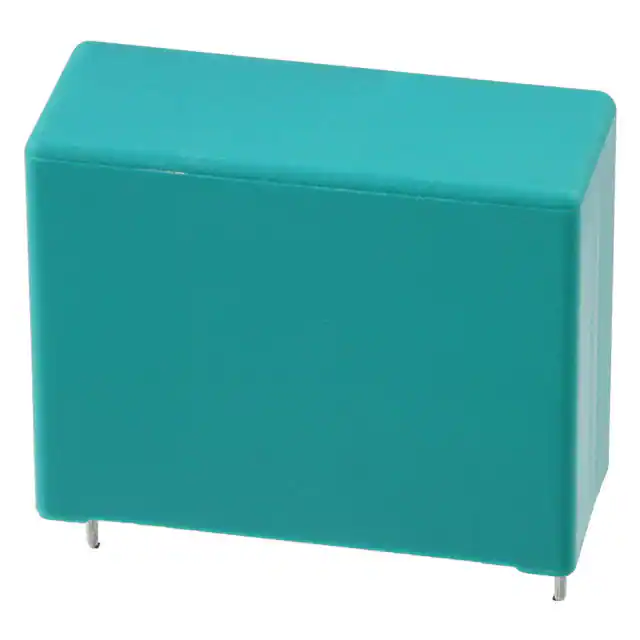

C4AEGBU4680A1XJ CAP FILM 6.8UF 5% 450VDC RADIAL KEMET	8,446	5.85	RFQ	Datasheet	Radial	Bulk	C4AE	Active	6.8 µF	±5%	-	450V	Polypropylene (PP), Metallized	10 mOhms	-40°C ~ 85°C	Through Hole	1.240 L x 0.512 W (31.50mm x 13.00mm)	0.992 (25.20mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
R76PR41004030J CAP FILM 1UF 5% 630VDC RADIAL KEMET	9,034	5.93	RFQ	Datasheet	Radial	Tray	R76	Active	1 µF	±5%	400V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	1.260 L x 0.709 W (32.00mm x 18.00mm)	1.303 (33.10mm)	PC Pins	1.083 (27.50mm)	High Frequency, Switching; High Pulse, DV/DT	-
942C16P1K-F CAP FILM 0.1UF 10% 1.6KVDC AXIAL Cornell Dubilier Electronics (CDE)	9,834	5.96	RFQ	Datasheet	Axial	Bulk	942C	Active	0.1 µF	±10%	460V	1600V (1.6kV)	Polypropylene (PP), Metallized	4 mOhms	-55°C ~ 105°C	Through Hole	0.886 Dia x 1.339 L (22.50mm x 34.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
PHC1405100KR 400V, 10UF, 10 PERCENT, AXIAL SW Nichicon	7,069	6.13	RFQ	Datasheet	Axial	Bulk	PHC	Active	10 µF	±10%	250V	400V	Polypropylene (PP), Metallized	6.3 mOhms	-40°C ~ 85°C	Through Hole	0.984 Dia x 1.299 L (25.00mm x 33.00mm)	-	PC Pins	-	High Frequency, Switching	-
C4AF7BU4330A12K CAP FILM 3.3UF 10% 700VDC RADIAL KEMET	5,844	6.14	RFQ	Datasheet	Radial	Box	C4AF	Active	3.3 µF	±10%	350V	700V	Polypropylene (PP), Metallized	6 mOhms	-55°C ~ 105°C	Through Hole	1.240 L x 0.866 W (31.50mm x 22.00mm)	1.465 (37.20mm)	PC Pins	1.083 (27.50mm)	Automotive	AEC-Q200

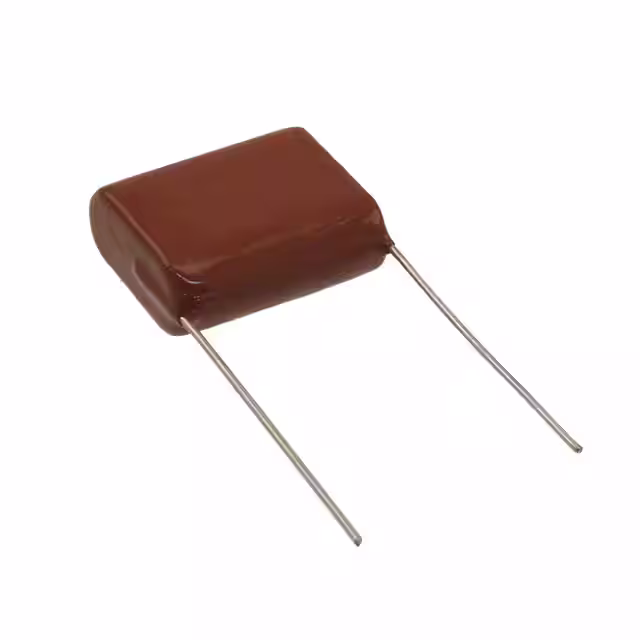

DME2W4P7K-F CAP FILM 4.7UF 10% 250VDC RADIAL Cornell Dubilier Electronics (CDE)	8,011	6.16	RFQ	Datasheet	Radial	Bulk	DME	Active	4.7 µF	±10%	160V	250V	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	1.024 L x 0.492 W (26.00mm x 12.50mm)	0.945 (24.00mm)	PC Pins	0.886 (22.50mm)	General Purpose	-
FB37M6P0106KC CAP FILM 10UF 10% 1.2KVDC RADIAL KYOCERA AVX	7,524	6.16	RFQ	Datasheet	Radial	Bulk	FB	Active	10 µF	±10%	-	1200V (1.2kV)	Polypropylene (PP), Metallized	8.5 mOhms	-40°C ~ 100°C	Through Hole	1.673 L x 1.181 W (42.50mm x 30.00mm)	1.772 (45.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
