| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-M46U-000EOPTOISO 3.75KV OPN COLLECTOR 5SO |
6,477 | 5.49 |
RFQ |
Datasheet |
Tube | R²Coupler™ | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 550ns | - | 1.5V | 20mA | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
HCPL-0201OPTOISO 3.75KV PUSH PULL 8SO |
5,847 | 5.92 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
ACNV2601-300EOPTOISO 7.5KV OPEN COLL 10DIP GW |
9,803 | 7.43 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 80ns, 80ns | 25ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

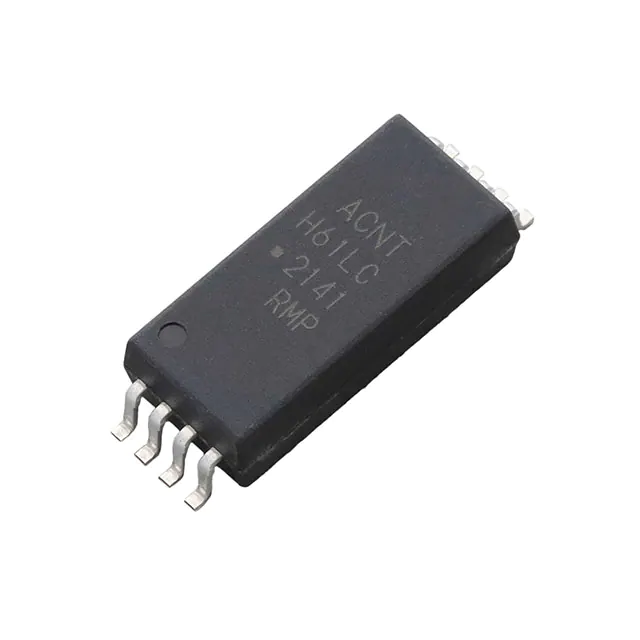

ACNT-H61LC-000E15MM CTI600V OPTOCOUPLER (10MBD) |
6,477 | 8.07 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 100ns, 100ns | 10ns, 10ns | 1.38V | 10mA | 5.5V | -40°C ~ 105°C | Surface Mount |
|
ACPL-K75T-000EOPTOISO 5KV 2CH PUSH PULL 8SO |
7,974 | 8.42 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | - | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
HCPL-2231OPTOISO 3.75KV 2CH PSH PULL 8DIP |
1,711 | 12.51 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-5430OPTOISO 1.5KV 2CH PUSH PULL 8DIP |
740 | 124.87 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 500V/µs | DC | Push-Pull, Totem Pole | 25 mA | 40Mbps | 60ns, 60ns | 15ns, 10ns | 1.35V | 10mA | 4.75V ~ 5.25V | -55°C ~ 125°C | Through Hole |
|
HCPL-6650OPTOISO 1.5KV OPEN COLL 16FLATPK |
394 | 138.93 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
|
HCPL-6250OPTOISO 1.5KV PUSH PULL 16FLATPK |
852 | 181.32 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | -55°C ~ 125°C | Surface Mount |
.JPG)
|
H11L1S1(TA)-VOPTOISO 5KV OPEN COLLECTOR 6SMD |
5,440 | 1.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.15V | 60mA | 3V ~ 16V | -55°C ~ 100°C | Surface Mount |
|
VOH1016AB-VTOPTOISO 5KV OPEN COLLECTOR 6-SMD |
8,280 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 2MHz | 2µs, 1.2µs | 50ns, 40ns | 1.1V | 50mA | 16V | -40°C ~ 100°C | Surface Mount |
.JPG)
|
TLP104(V4-TPL,EOPTOISO 3.75KV OPEN COLL SO6 |
5,079 | 1.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 8 mA | 1Mbps | 550ns, 400ns | - | 1.61V | 25mA | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
TLP2766A(TP4,ECOUPLER HIGH SPEED LOGIC OUTPUT |
5,557 | 1.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 55ns, 55ns | 5ns, 4ns | 1.8V (Max) | 25mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ICPL0601SMT&ROPTOISO 3.75KV OPN COLLECTOR |
7,546 | 1.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.4V | 20mA | 7V | -40°C ~ 100°C | Surface Mount |
|
TLP2662(TP1,F)OPTOISO 5KV 2CH OPN COL 8SMD |
6,060 | 1.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10MBd | 75ns, 75ns | 12ns, 3ns | 1.55V | 20mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
6N137-X009TOPTOISO 5.3KV 1CH OPN DRAIN 8SMD |
7,662 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
VO2601-X007TOPTOISO 5.3KV OPEN DRAIN 8SMD |
5,131 | 2.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5300Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
-V.jpg)
|
EL2630S(TA)OPTOISO 5KV 2CH OPN COLL 8-SMD |
7,671 | 2.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | -40°C ~ 100°C | Surface Mount |
|
H11L3ELOPTOISO 5KV OPEN COLLECTOR 6DIP |
7,960 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.15V | 60mA | 3V ~ 16V | -55°C ~ 100°C | Through Hole |
|
|
H11L1-VOPTOISO 5KV OPEN COLLECTOR 6DIP |
6,789 | 1.05 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.15V | 60mA | 3V ~ 16V | -55°C ~ 100°C | Through Hole |
