| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

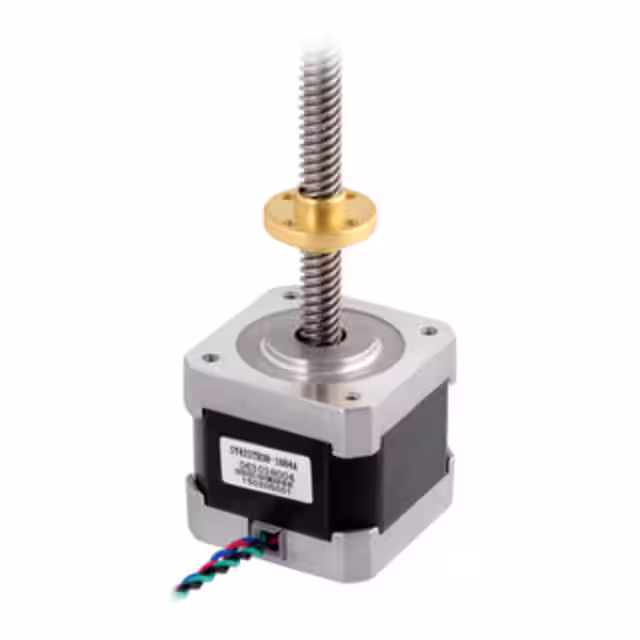

2689STEPPER MOTOR W/18CM LEAD SCREW |
2,949 | 62.75 |
RFQ |
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200 | 1.8° | - | 51 / 360 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.315 (8.00mm) | 11.102 (282.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms |
|
SH2141-5541PSTEP, F2, SQ.14, 1.8, , , BIPOLA |
3,050 | 62.97 |
RFQ |
Datasheet |
Box | SH | Active | Hybrid | Bipolar | 24VDC | 300 mA | 200 | 1.8° | - | 0.92 / 7 | Square - 0.551 x 0.551 (14.00mm x 14.00mm) | - | 0.157 (4.00mm) | 0.591 (15.00mm) | 0.453 (11.50mm) | Wire Leads | -10°C ~ 50°C | 21 Ohms |
|

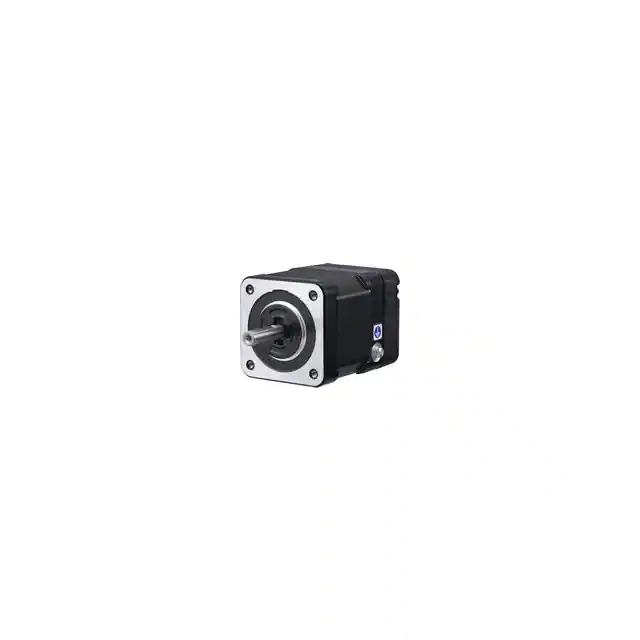

PBM423FXK30-MPB, PB, SQ.42, FOR PB4A, , |
12,154 | 0.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 200VAC | - | - | - | - | 49.56 / 350 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.236 (6.00mm) | 0.811 (20.60mm) | 1.220 (31.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|

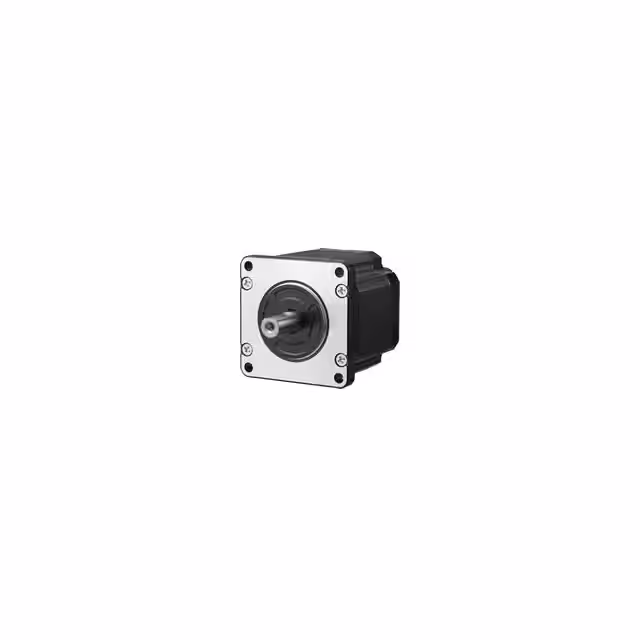

PBM603FXK30-MPB, PB, SQ.60, FOR PB4A, , |
12,918 | 0.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 200VAC | - | - | - | - | 184.1 / 1300 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.394 (10.00mm) | 0.811 (20.60mm) | 1.969 (50.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
SM2863-5252STEP, F2, SQ.86, 1.8, HALF INCH |
698 | 195.13 |
RFQ |
Box | - | Active | Hybrid | Bipolar | 100VAC | 6 A | 200 | 1.8° | - | 1275 / 9000 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.46 Ohms | |
|
|
SM2863-5152STEP, F2, SQ.86, 1.8, HALF INCH |
779 | 195.13 |
RFQ |
Box | - | Active | Hybrid | Bipolar | 100VAC | 4 A | 200 | 1.8° | - | 1275 / 9000 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 1 Ohms | |
|

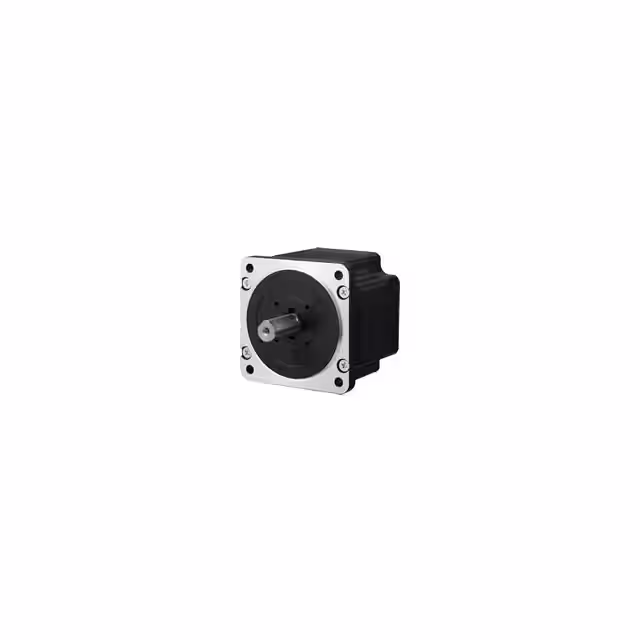

PBM861FXK30-MPB, PB, SQ.86, FOR PB4A, , , CE/ |
799 | 253.11 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 200VAC | - | - | - | - | 439 / 3100 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | - | 0.551 (14.00mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads with Connector | -10°C ~ 40°C | - |
|

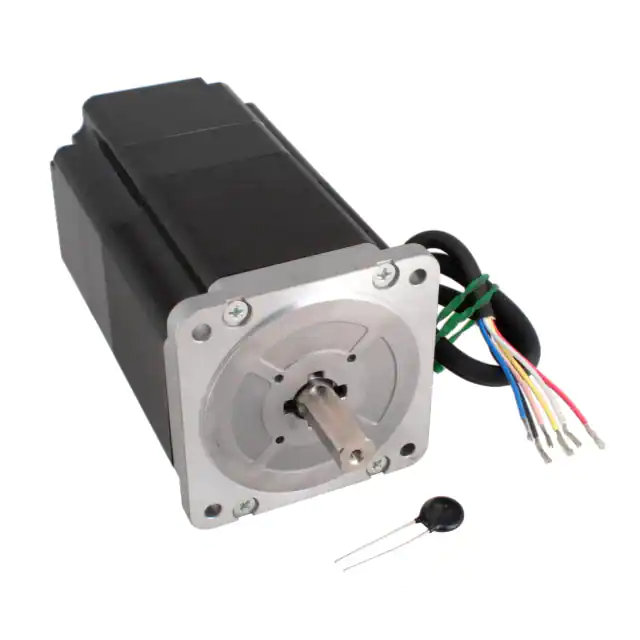

SH2862-52XB12STEP, F2 MOTOR, SQ.86, 2 PHASE S |
661 | 448.24 |
RFQ |
Box | - | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 6 A | 200 | 1.8° | - | 906.3 / 6400 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.36 Ohms | |
|
|
PM42L-048-285DSTEPPER MOTORS PERMANENT MAGNET |
1,404 | 12.83 |
RFQ |
Bulk | - | Last Time Buy | Permanent Magnet | Bipolar | 3VDC | 1 A | 48 | 7.5° | - | 5.56 / 39.23 | Round - 1.650 Dia (42.00mm) | 17 | 0.118 (3.00mm) | 0.433 (11.00mm) | 1.949 (49.50mm) | Wire Leads with Connector | 75°C | 3 Ohms | |
|
|
PM35S-048-324FSTEPPER MOTORS PERMANENT MAGNET |
4,871 | 12.83 |
RFQ |
Bulk | - | Last Time Buy | Permanent Magnet | Bipolar | 2VDC | 750 mA | 48 | 7.5° | - | 3.89 / 27.46 | Round - 1.378 Dia (35.00mm) | 14 | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.654 (42.00mm) | Wire Leads with Connector | 75°C | 4 Ohms | |
|
|
PM25S-048-314PERM MAGNET STEP MTR 2V 0.8NCM |
3,145 | 13.27 |
RFQ |
Bulk | - | Active | Permanent Magnet | Bipolar | 2VDC | 1 A | 48 | 7.5° | - | 1.1 / 7.77 | - | - | 0.079 (2.00mm) | 0.551 (14.00mm) | 1.260 (32.00mm) | Wire Leads with Connector | - | 2 Ohms | |
|
|
PM42L-048-285DPERM MAGNET STEP MTR 3V 4NCM |
4,110 | 15.82 |
RFQ |
Bulk | - | Active | Permanent Magnet | Bipolar | 3VDC | 1 A | 48 | 7.5° | - | 5.55 / 39.23 | Round - 1.650 Dia (42.00mm) | 17 | 0.118 (3.00mm) | 0.433 (11.00mm) | 1.949 (49.50mm) | Wire Leads with Connector | - | 3 Ohms | |
|
10PM-K013BSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,118 | 32.57 |
RFQ |
Datasheet |
Bulk | 10PM | Active | Hybrid | Bipolar | 24VDC | 210 mA | 200 | 1.8° | - | 6.94 / 49 | Square - 0.984 x 0.984 (25.00mm x 25.00mm) | 10 | 0.197 (5.00mm) | 0.394 (10.00mm) | 0.787 (20.00mm) | Connector | - | 47 Ohms |
|
|
PM25S-024-HHF8STEPPER MOTOR PM TAPPED M2.6 |
1,258 | 33.33 |
RFQ |
Datasheet |
Bag | PM | Active | Permanent Magnet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PG15S-J20-HHF3STEP MOTOR PM GEARED BIPOLAR 5V |
2,939 | 35.00 |
RFQ |
Datasheet |
Tray | PG | Active | Permanent Magnet Gear Motor | Bipolar | 5VDC | - | 1000 | 0.36° | - | - | Round - 0.591 Dia (15.00mm) | - | 0.118 (3.00mm) | 0.354 (9.00mm) | 0.787 (20.00mm) | Wire Leads | 0°C ~ 50°C | 10 Ohms |
|
|
10PM-K405BSTEPPER MOTOR HYBRID BIPOLAR 24V |
1,922 | 35.35 |
RFQ |
Datasheet |
Box | 10PM | Active | Hybrid | Bipolar | 24VDC | 1.5 A | 200 | 1.8° | - | 17 / 120 | Square - 0.984 x 0.984 (25.00mm x 25.00mm) | 10 | 0.197 (5.00mm) | 0.394 (10.00mm) | 0.787 (20.00mm) | Connector | - | 1.6 Ohms |
|
|
17PM-K249BSTEPPER MOTOR HYBRID BIPOLAR 24V |
3,792 | 35.35 |
RFQ |
Datasheet |
Bulk | 17PM | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200 | 1.8° | - | 19.83 / 140 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 5.4 Ohms |
|
|
17PM-K249USTEP MOTOR HYBRID UNIPOLAR 24V |
4,194 | 35.35 |
RFQ |
Datasheet |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 800 mA | 200 | 1.8° | - | 14.16 / 100 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 2.7 Ohms |
|
|
17PM-K264USTEP MOTOR HYBRID UNIPOLAR 24V |
4,596 | 35.35 |
RFQ |
Datasheet |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 600 mA | 200 | 1.8° | - | 14.16 / 100 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 6.9 Ohms |
|
|
17PM-K749BSTEPPER MOTOR HYBRID BIPOLAR 24V |
1,400 | 36.36 |
RFQ |
Datasheet |
Bulk | 17PM | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200 | 1.8° | - | 9.2 / 64.97 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 4.4 Ohms |
